Nominal Thickness: inches: 1/4"

Level: UL 1 - Hand Guns / Small Arms
Weapon: 9mm
Ammunition: FMJ / LC
Velocity ft/sec: 1090

Ballistic Panel Notes:

1. VARIOUS SIZES AVAILABLE

[3’ X 8’] [3’ X 9’ ] [3’ X 10’]

[4’ X 8’] [4’ X 9]’ [4’ X 10’]

5-foot-wide panels are an option.

Water Jet Cutting Available

Click here to view the specifications, MSDS and our Videos

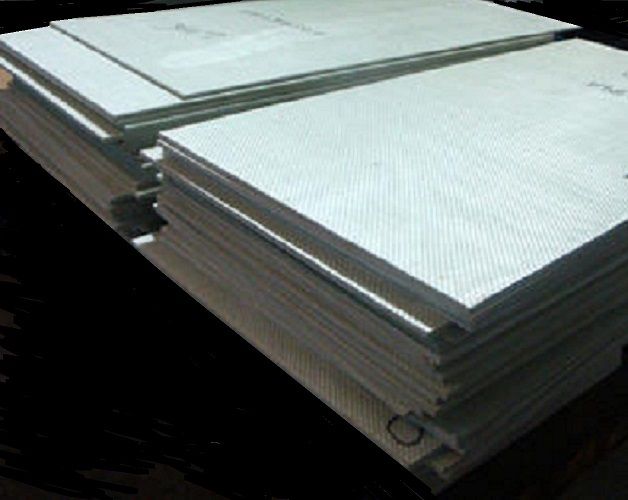

ArmorCo Fiberglass Bullet Resistant Panels are made with multiple layers of specially woven fiberglass with a proprietary resin system.

The Panels stop bullets by encapturing the ballistic projectiles in an innovative process called ply-delamination, and they also defeat the projectiles without the danger of ricocheting or spalling.

Suggested uses: Protective wall systems, Potium furniture and doors, and vehicle armor to name a few.

PERFORMANCE LEVEL Underwriters Laboratory UL 752 11th Edition Standard for Bullet Resisting Equipment.

One hour fire rated to ASTM E119-00a Building Construction and Materials.

AMMUNITION TESTED 9mm full metal copper jacket with lead core, 124 Grain, 1175 fps, 3 shots

INSTALLATION Cut ArmorCo Opaque Fiberglass using ordinary carpentry tools. We suggest using a RemGrit® "Grit Edge“ saw blade. Install using self tapping drywall screws. Predrilling may be required on 1 3/16” and thicker material. Drill using high speed steel twist drill bits. We recommend that you incorporate 4“ overlap strips (battens) at seams. WARRANTY Materials and workmanship shall be warranted against defects for a period of two (2) years from the date of receipt at the project site.
